JOYO Cab Box Guitar Cabinet Speaker Simulator and IR Loader

The JOYO CAB BOX is a guitar cabinet emulator, a guitar effect pedal that allows full configuration of vintage and modern amps. You can configure the power amp, Cab simulations, Microphone type and distance, EQ, midi control and loading & editing of 3rd party IR files.

The Cab box makes everything about recording or performing so much easier and authentic with a massive array of adjustable parameters to achieve the custom guitar set up of your choice.

The JOYO Cab Box has a straightforward and user friendly interface that fits on the pedalboard, it offers full configuration and eliminates complex menu options found on amps, tablets and computers.

The sound of vintage and modern amps is at your feet.

The JOYO Cab box features

  • 4 tube power amps - select and edit the tube parameter, Select tubes from 6L6,6V6,EL34 or EL84
  • 20 cabinet models (see below)
  • 11 classic microphone models - adjusting microphone model, microphone type, microphone angle position & distance.

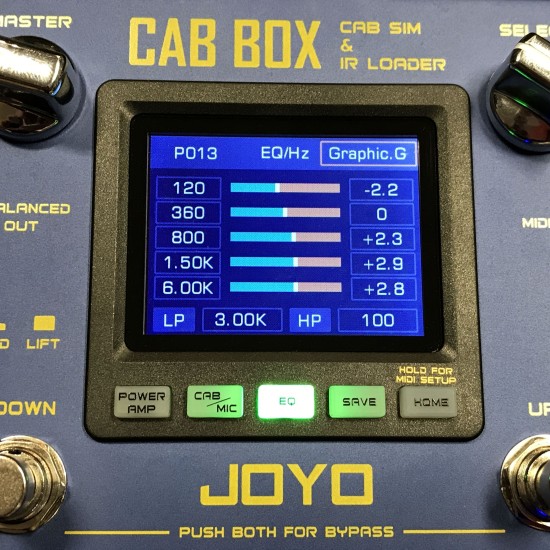

  • 3 fully configurable post EQs for guitar, bass & parametric. With settings for Gain & Attentuation, Q value, Low & High Pass filtering. The 5 band EQ is fully customisable, setting the 5 bands from 80hz to 11khz and level adjustments as required for each.
  • 20 preset IR loading and an additional 10 loading memory banks for third party IR.
  • 128 cab memory slots to save all of your presets.

An IR is an impulse response (IR, for short) its a sound measurement that takes into account the conditions around a guitar cabinet speaker, including the room, microphone and mic preamp. The JOYO Cab box works with third party IR files, simply connect to the pc/mac via USB for IR loading using the JOYO Cab software.

With the JOYO Cab Box IR loader, in addition to 20 preset saving locations,  you can store 10 additional third party IRs, Using the software you can load or delete third party IRs and then apply these to the Cab box emulation.


IR sampling info:

  • IR file format: .wav
  • Sampling accuracy: 24bit
  • (supports 16/24/32 bits third party IR files)
  • Sample rate: 44.1kHz
  • Sample’s length:1024pts


The JOYO CAB BOX has many parameters to adjust, a large display screen, easy control buttons and sits nicely on the pedalboard. It is perfect on the board for performing, at the recording desk, mixer/pa or even at home using direct with headphones.

Inside the JOYO you will find cab boxes inspired by world class vintage and modern Cabinet speakers amps:

  • Vibro Silver 1x8
  • Prince Reverb 1x10
  • 57 Tweed 1x12
  • AC15 1x12
  • 67 Twin 2x12
  • Madchless 2x12
  • AC30 Blue 2x12
  • 64 Super 4x10
  • Bass Bigman 4x10
  • 1960A Green 4x12
  • 1960B V 30 4x12
  • Juice PPC 4x12
  • Sodano L 4x12
  • Recto MB S 4x12
  • Recto MB T 4x12
  • Die2al V30 4x12
  • Die2al G12 4x12
  • Ampg SVT 1x15
  • Ampg SVT 4x10
  • Ampg SVT 8x10

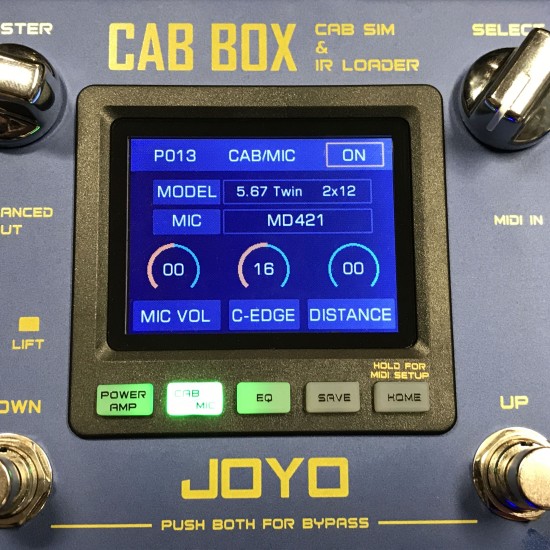

Microphones with distance and angle adjustment

  • SM57
  • SM58
  • MD421
  • MD441
  • U47
  • U87
  • RODENT1
  • MXL2001P
  • MXL2003
  • C3000
  • C4000B

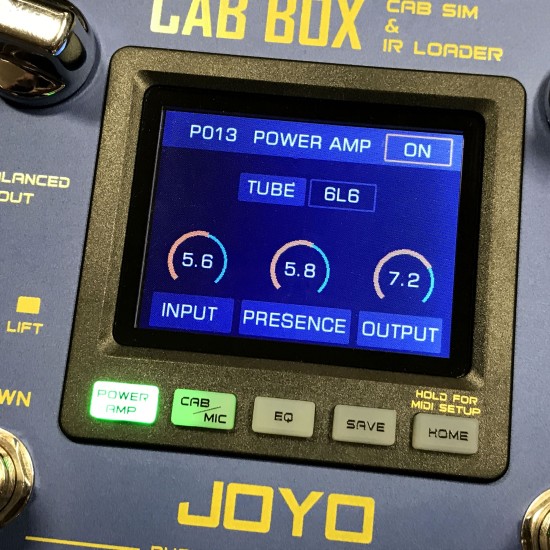

Power Amp Tube Valves -  Adjust input, presence and output.

  • 6L6
  • 6V6
  • EL34
  • EL84



Control buttons: Master Volume, Parameter Select, Power Amp, Cab/Mic, EQ, SAVE, HOME, LED Toggle

Specifications:

  • Input: 6.35mm mono plug
  • Output: 6.35mm mono plug
  • XLR balanced plug
  • 3.5mm stereo plug
  • Input Impedance: 2.2MΩ
  • Output Impedance: 470Ω
  • XLR Output Impedance: 470Ω
  • Headphones Impedance: 35Ω
  • Working Current : 300mA
  • Working Voltage: DC 9V(center minus)
  • Dimensions:  130*110*50mm
  • Weight: 418g
